Product Description
KFI AS-50WX Assault Winch (Wide) – 5000lb Synthetic Cable with Remote
Winch Details:
Whether it’s on a winding trail, plowing snow, or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your UTV or SxS with a KFI AS-50WX Assault Winch and feel confident you can pull yourself out of any situation. This wide 5000lb Assault Series winch features a synthetic cable, cable hook stopper, dynamic and mechanical braking system, water-resistant seals to keep the elements out, a standard 4-hole mounting design, and a heavy-duty all-metal turn clutch. It is backed by a KFI Two-Year Limited Lifetime Warranty. The KFI AS-50WX Assault Winch comes with everything you need except an ATV model-specific winch mount, including detailed installation instructions and hardware.
50' Synthetic Cable with a 5' protective sheath and end loop (#SYN25-S50) provides enhanced durability for tough conditions.
Also included is a Handheld 14' Corded Remote (ATV-HR) for situations where you need to control your winch from a distance. This compact, high-quality remote provides more reliable control than wireless options. A socket plug-and-play wiring system is included so that you can easily store your remote when not in use.
Take control of your winch with the included UTV Dash Rocker Switch (UTV-DRS-K), featuring a blue LED light for nighttime use. The switch allows you to operate the winch without letting go of the steering wheel. Installation is straightforward with the included wiring harness and plug.
The new Heavy-Duty Electric Contactor (AS-CONT) protects your ATV’s electrical system and controls the power distribution of the winch through your switches.
Additionally, the package includes our KFI Split Cable Hook Stopper (#ATV-SCHS), which:
- Eliminates wear and tear on your rollers, reducing cable wear
- Eliminates hook clatter on rough trails
- Protects the winch motor and gears from over-pulling the cable
- Keeps tension on the hook to prevent loose cables
- Acts as an anti-kickback feature in case of cable snapping
- Offers a sleek look that will have everyone wanting one!

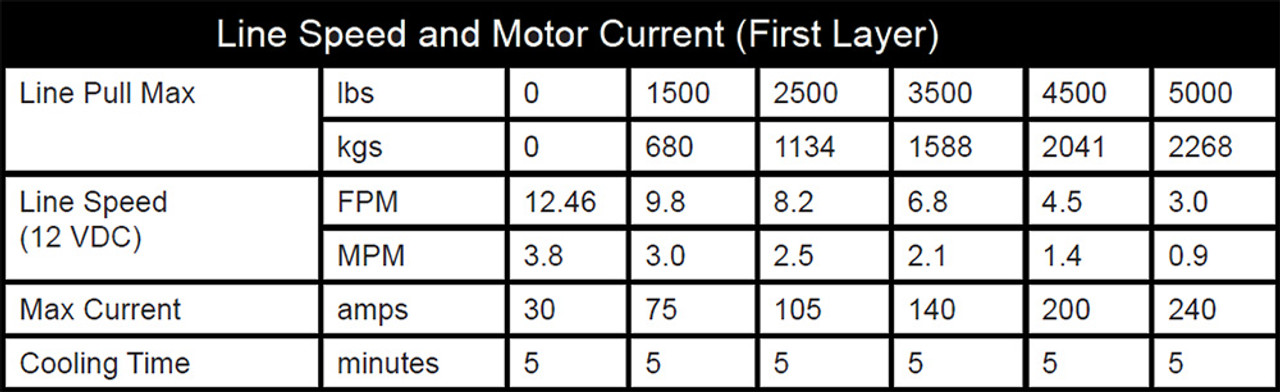

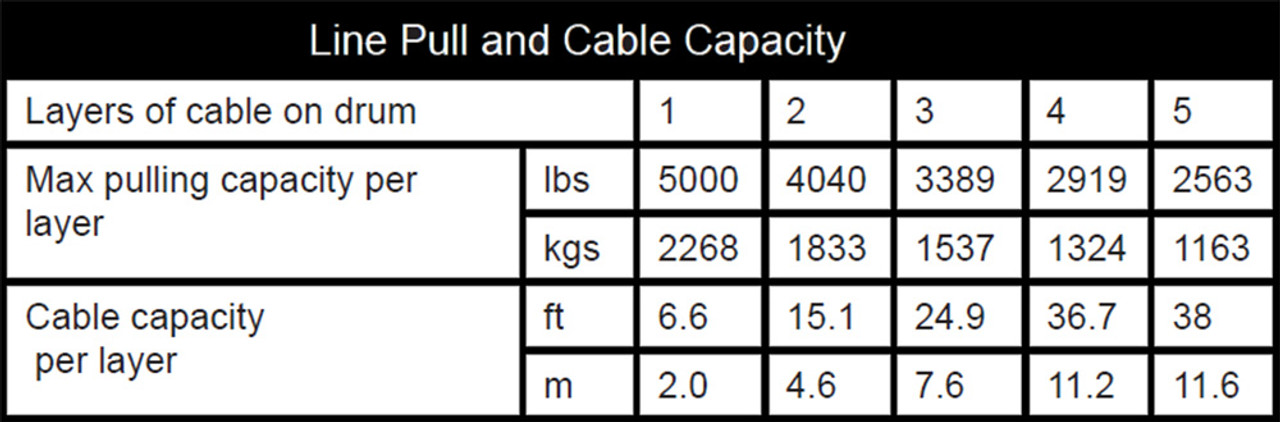

AS-50WX Specifications:
- Model: AS-50WX Series
- Rated Line Pull: 5000 lbs.
- Motor: 12V DC, 1.22 hp Permanent Magnet
- Gear Ratio: 180:1, All-metal Planetary Gear Drive
- Brake: Dynamic and Mechanical
- Clutch: All Metal Cam Activated Freespool
- Drum Size: 1.75" (D) x 4.88" (L)
- Synthetic Cable: 15/64" (D) x 50' (L) Smoke color
- Fairlead: Multi-directional POM Roller
- Control: Deluxe Dash-Mounted Dash-Rocker Control Switch & Heavy-Duty Corded Remote Switch
- Winch Dimensions: 15.63" L x 4.45" D x 4.76" H
- Mount Plate: Fairlead Mount Only (Requires a model-specific ATV mount)
- Mounting Bolt Pattern: 3.00" x 6.60" (4-Hole wide)
- Recommended Battery: 12 Amp/hour minimum
- Warranty: Two-Year Limited Lifetime
- Winch Weight: 27.8 lbs. (complete kit)
- Certification: CE Certified
