Product Description
UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current KFI-106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty

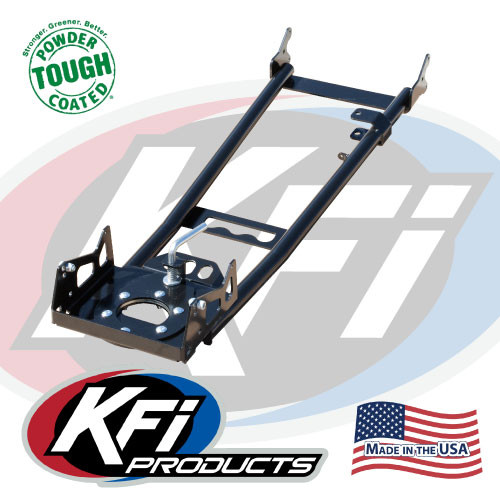

UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guarantee
| CF Moto UTV's | Year | Model Specific Mount |
|---|---|---|
| Rancher 600 | 2012 | n/a |
| Terracross Z6 | 2012 | 105480** |
| U-Force 500 | ‘16-20 | C105600 |
| U-Force 600 | '21-24 | 106415 |
| U-Force 800 | ‘13-24 | 105600 |
| U-Force 1000 | ‘19-24 | 106050 |
| Z-Force 500 | ‘16-22 | 105645 |
| Z-Force 600 / 600EX | ‘13-15 | 105480** |
| Z-Force 800 / 800EX | ‘14-22 | 105645 |
| Z-Force 1000 | ‘18-19 | 105645 |
| Z-Force 950 Sport | '20-21 | 106170 |
| Z-Force 950 Sport/Trail G2 | 2023 | 106605 |
MOUNT # NOTES:
**= Recommend also purchasing the #KFI-105270 Plow Pulley if using STEEL cabled winches or #KFI-106045 Lift Lever is using SYNTHETIC cabled winches.
C= Requires Drilling
