Product Description

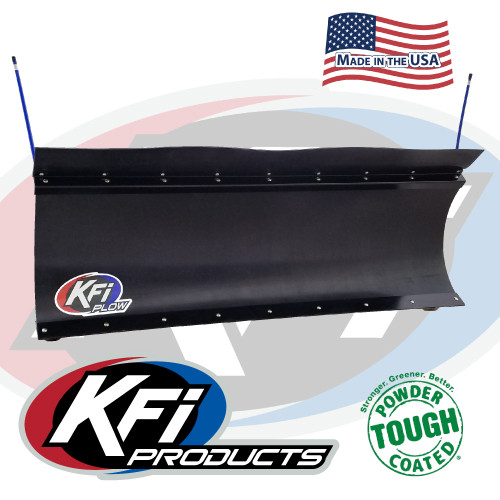

UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current #KFI-106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty
UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty

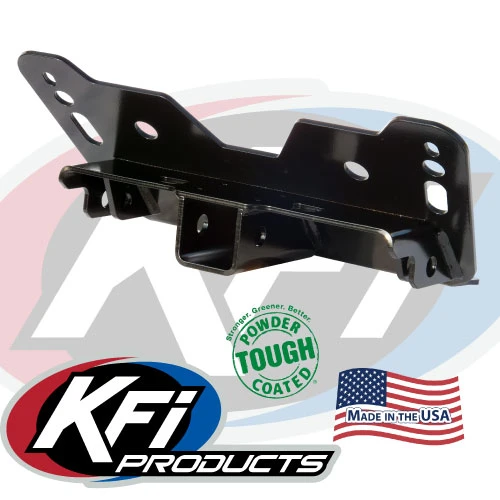

UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guarantee
| Polaris Mid-Size Ranger | Year | Front Mount |
|---|---|---|
| ETX Ranger Midsize 4x4 | '15-16 | A-B105255 |
| EV Ranger Midsize 4x4 | '10-21 | A-B105255 |
| 400 Ranger Midsize 4x4 | '10-14 | A-B105255 |
| 500 Ranger Midsize 4x4 | '11-13 | A-B105255 |
| 500 Ranger Midsize 4x4 | '17-20 | A-B105255 |
| 500 Ranger Midsize 4x4 Crew | '11-13 | A-B105255 |
| 570 Ranger Midsize 4x4 | '14-21 | A-B105255 |
| 570 Ranger Midsize 4x4 Crew | '14-21 | A-B105255 |
| 800 Ranger Midsize 4x4 | '13-14 | A-B105255 |
MOUNT # NOTES:
A= Plow mount includes a lower 2" Receiver Hitch (built-in)
B= Requires stock front bumper
| Polaris Full-Size Ranger | Year | Front Mount |
|---|---|---|
| Ranger Diesel 900 | '11-14 | A-B105255 |
| Ranger Diesel Crew 900 | '12-14 | A-B105255 |
| Ranger Diesel HST/Deluxe | '14-17 | A-B105475 |
| Ranger Diesel 1000 | '15-18 | A-B105475 |
| Ranger Diesel Crew 1000 | '15-18 | A-B105475 |
| Ranger TM 2x4 | '04-06 | A-C105260 |
| Ranger 425 2x4 | '01-04 | A-C105260 |
| Ranger 500 2x4 | '01-08 | A-C105260 |
| Ranger 500 | '03-08 | A-C105260 |
| Ranger 500 | '09-10 | A-B105255 |
| Ranger 500 6x6 | '02-05 | A-C105260 |
| Ranger 570 | 2015 | A-B105475 |
| Ranger 570 (800 Body Style) | '16-21 | A-B105255 |
| Ranger 570 Crew (800 Body Style) | '16-21 | A-B105255 |
| Ranger XP 570 (900 Body Style) | 2016 | A-B105475 |
| Ranger XP 570 Crew (900 Body Style) | '15-16 | A-B105475 |
| Ranger 700 | '05-08 | A-C105260 |
| Ranger 700 | 2009 | A-B105255 |
| Ranger 700 Crew | '08-09 | A-C105260 |
| Ranger 700 6x6 | '06-09 | A-C105260 |
| Ranger 800 | '10-14 | A-B105255 |
| Ranger 800 Crew | '10-14 | A-B105255 |
| Ranger 800 6x6 | '10-16 | A-B105255 |
| Ranger 900 | '13-19 | A-B105475 |
| Ranger 900 Crew | '14-19 | A-B105475 |
| Ranger 900 High Lifter Edition | 2016 | n/a |
| Ranger 1000 | 2017 | A-B105475 |
| Ranger XP 1000 | '18-21 | Q105975O or 105970 |
| Ranger 1000 | '20-21 | SEE NOTE X |
| Ranger 1000 EPS | '20-21 | Q105975O or 105970 |
| Ranger 1000 Premium | '20-21 | Q105975O or 105970 |
| Ranger 1000 Crew | '17-18 | A-B105475 |
| Ranger XP 1000 Crew | '19-21 | Q105975O or 105970 |
| Ranger 1000 Crew | '20-21 | SEE NOTE X |
| Ranger 1000 EPS Crew | 2020 | Q105975O or 105970 |
| Ranger 1000 Premium Crew | '20-21 | Q105975O or 105970 |
| Ranger 1000 High Lifter Edition | '17-21 | n/a |
| Ranger 1000 Crew High Lifter Edition | '17-21 | n/a |
| Ranger 1000 Northstar Edition (HVAC) | 2017 | A-B105475 |
| Ranger 1000 Northstar Edition | '18-21 | Q105975O or 105970 |
| Ranger 1000 Crew Northstar Edition (HVAC) | '17-18 | A-B105475 |
| Ranger 1000 Crew Northstar Edition 4x4 | '19-21 | Q105975O or 105970 |
MOUNT # NOTES:
A = Plow mount includes a lower 2" Receiver Hitch (built-in)
B = Requires stock front bumper
C = Requires Drilling
O = Will not work with plow lift kit
Q = Requires New KFI push tubes #106300
X = This machine requires you to purchase the Polaris OEM front bumper to install a winch or plow. See your local Polaris Dealer.
| Polaris RZR SxS | Year | Front Mount |
|---|---|---|
| RZR 4 800 (Base/EPS) |
