Product Description
UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current KFI No.106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty

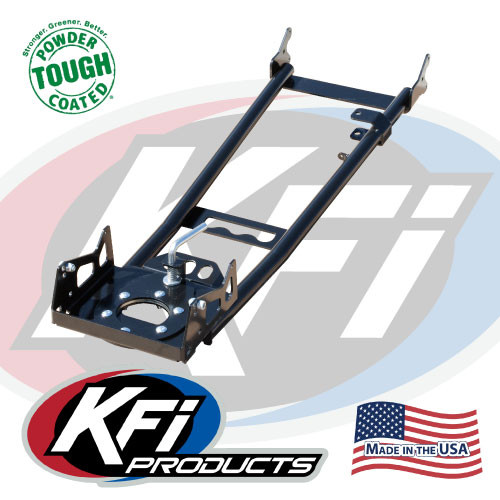

UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guarantee
| Yamaha UTV's | Year | Model Specific Mount |
|---|---|---|
| 450 Rhino | ‘06-11 | 105265** |
| 660 Rhino | ‘03-07 | 105265** |
| 700 Rhino | ‘08-13 | 105265** |
| Viking | '14-21 | A&N 105530 |
| Viking VI | '15-21 | A&N 105530 |
| Wolverine / R-Spec / SE | '16-18 | A&N 105695 |
| Wolverine X2 / R-Spec / SE | 2019 | A&N 105695 |
| Wolverine X2 (all models) | 2020 | 106145 |
| Wolverine X4 / SE | '18-19 | A&N 105695 |
| Wolverine X4 (all models) | '20-21 | 106145 |
** = Recommend also purchasing the #KFI-105270 Plow Pulley if using STEEL cabled winches or #KFI-106045 Lift Lever is using SYNTHETIC cabled winches.
MOUNT # NOTES:
A = Plow mount includes a lower 2" Receiver Hitch (built-in)
N = Requires KFI Winch Mount #KFI-101515
