Product Description
KFI Pro-Poly Series 72" Plow System For John Deere

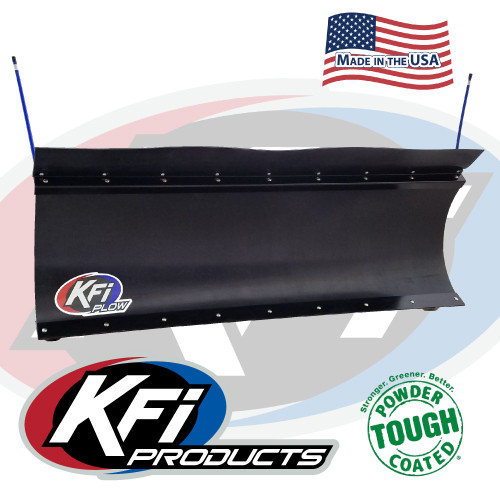

UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current KFI-106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty
UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty

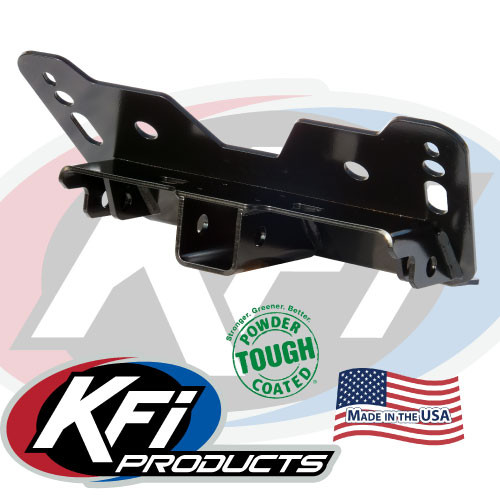

UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guarantee
| John Deere UTV | Year | Model Specific Mount |
|---|---|---|
| Gator HPX 4x4 and 2x4 (all) (NOT 615E or 815E) | ALL | 105545 |
| Gator HPX 615e | ALL | 105395 |
| Gator HPX 815e | ALL | 105395 |
| Gator RSX 860e | ALL | N/A |
| Gator RSX 850i | ALL | N/A |
| Gator RSX 850i SPORT | ALL | N/A |
| Gator RSX 860i | ALL | N/A |
| Gator RSX 860m | ALL | N/A |
| Gator XUV 550 | ALL | 105455 |
| Gator XUV 550 S4 | ALL | 105455 |
| Gator XUV 560 | ALL | 105455 |
| Gator XUV 560 S4 | ALL | 105455 |
| Gator XUV 560E | ALL | 105455 |
| Gator XUV 560E S4 | ALL | 105455 |
| Gator XUV 590E | ALL | 105455 |
| Gator XUV 590E S4 | ALL | 105455 |
| Gator XUV 590i | ALL | 105455 |
| Gator XUV 590i S4 | ALL | 105455 |
| Gator XUV 590m | ALL | 105455 |
| Gator XUV 590m S4 | ALL | 105455 |
| Gator XUV 620i | ALL | 105545 |
| Gator XUV 625i | ALL | 105395 |
| Gator XUV 825e | ALL | 105395 |
| Gator XUV 825i | ALL | 105395 |
| Gator XUV 825i S4 | ALL | 105395 |
| Gator XUV 825m | ALL | 105395 |
| Gator XUV 825m S4 | ALL | 105395 |
| Gator XUV 835e | ALL | 105865 |
| Gator XUV 835m | ALL | 105865 |
| Gator XUV 835r | ALL | 105865 |
| Gator XUV 850d | ALL | 105545 |
| Gator XUV 855d | ALL | 105395 |
| Gator XUV 855d S4 | ALL | 105395 |
| Gator XUV 855e | ALL | 105395 |
| Gator XUV 855m | ALL | 105395 |
| Gator XUV 855m S4 | ALL | 105395 |
| Gator XUV 865e | ALL | 105865 |
| Gator XUV 865m | ALL | 105865 |
| Gator XUV 865r | ALL | 105865 |
