Product Description
UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current KFI-106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty
UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty

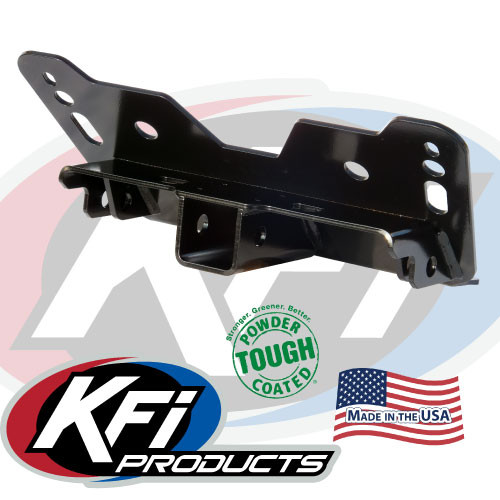

UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
| Kawasaki UTV's | Year | Model Specific Mount |
| 400 Mule SX/XC | '17-22 | 105875** |
| 520 Mule | '00-03 | n/a |
| 550 Mule | '99-04 | n/a |
| 600 Mule | ‘05-16 | F105470** |
| 610 Mule | ‘05-16 | F105470** |
| 700 Mule Pro MX | '19-22 | 106015 |
| 750 Teryx | ‘08-13 | 105250** |
| 750 Teryx 4 | '12-13 | 105250** |
| 800 Teryx | '14-22 | 105250** |
| 800 Teryx 4 | '14-22 | 105250** |
| Teryx KRX 1000 | '20-22 | 106095 |
| 820 Mule Pro FXT/FX | '15-22 | C105620 |
| 1000 Diesel Mule Pro DXT/DX | '16-22 | C105620 |
| 820 Mule Pro FXR | '18-22 | C105620 |
| 3000 Mule 2x4 | ‘01-08 | 105400 |
| 3010 Mule 4x4 | ‘01-08 | 105400 |
| 3020 Mule | ‘01-03 | n/d |
| 4000 Mule 2x4 | '09-22 | 105365 |
| 4010 Mule 4x4 | '09-22 | 105365 |
| 4010 Mule Diesel 4x4 | ‘09-14 | 105365 |
MOUNT # NOTES:
** = Recommend also purchasing the #KFI-105270 Plow Pulley if using STEEL cabled winches or #KFI-106270 Plow Pulley is using SYNTHETIC cabled winches.
C= Requires Drilling
F= Requires KFI Winch Mount #100575
