Product Description
FITMENT:
| Scrambler 850 | '13-21 |
| Scrambler 1000 | '14-18 |
| Sportsman ETX | '15-16 |
| Sportsman 400 | '11-14 |
| Sportsman 450 | '16-21 |
| Sportsman 500 | '11-13 |
| Sportsman 500 Touring | '11-13 |
| Sportsman 550 (XP) | '09-14 |
| Sportsman 550 Touring | '10-14 |
| Sportsman 550 X2 | '10-14 |
| Sportsman 570 (Base/SP/EFI) | '14-21 |
| Sportsman 570 EPS (Base/Utility) | '14-20 |
| Sportsman 570 EPS (!!! SEE NOTE X Below) | 2021 |
| Sportsman 570 Premium | 2020 |
| Sportsman 570 Premium (!!! SEE NOTE X Below) | 2021 |
| Sportsman 570 Utility HD LE (!!! SEE NOTE X Below) | 2021 |
| Sportsman 570 Touring | '14-21 |
| Sportsman 570 X2 | '15-21 |
| Sportsman 800 | '11-14 |
| Sportsman 850 (XP, Highlifter) | '09-21 |
| Sportsman 850 Touring | '10-21 |
| Sportsman 850 X2 | 2011 |
| Sportsman 1000 XP | '15-21 |
| Sportsman 1000 Touring | '15-21 |
| Sportsman 6x6 Big Boss | '11-21 |
Supersedes winch mount #101740 and 100740
NOTE X:Bumper Conversion Bracket #101895 will need to be purchased in order to reinstall OEM Polaris Front Bumper shown below.

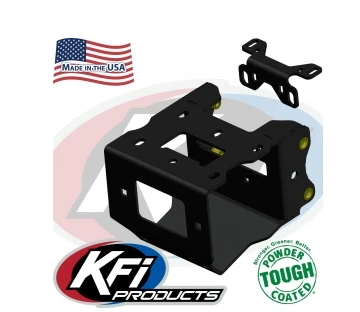

Specifications:
- 100% MADE IN USA.
- Constructed of 10 GA GR50 steel
- Designed to fit between in the OEM location below the radiator
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Mounts the same as OEM intended.
- Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Will work with Polaris Glacier Plow.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
Why buy the OEM Kit when you can save by getting your winch separate and buying our High Quality 100% American made winch mount. Your Sportsman is pre-wired with the battery wires pre-ran from your battery to the contactor mount located under your front RH wheel well. We have everything you need in our kit to mount your winch and fairlead.
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AS-50 (requires purchase of ATV-MR)
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : LT2000 / LT2500 / LT3000 / LT4000ATV (Will NOT work with Terra 25/35/45)
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK :1500lbs #2955AT
- CYCLE COUNTRY :Work Power 1500 and 2500
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- VENOM: 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- CHAMPION : 2-Hole Winches
- All with 3.00" x 4.875" bolt pattern mount-up.
- CHAMPION : ATV 4-hole Winches
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- SMITTYBILT :XRC 2.0SMITTYBILT :XRC 3.0 / XRC 4.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern.
- Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns.
- QUADBOSS: RP25 / RP35
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
