Product Description

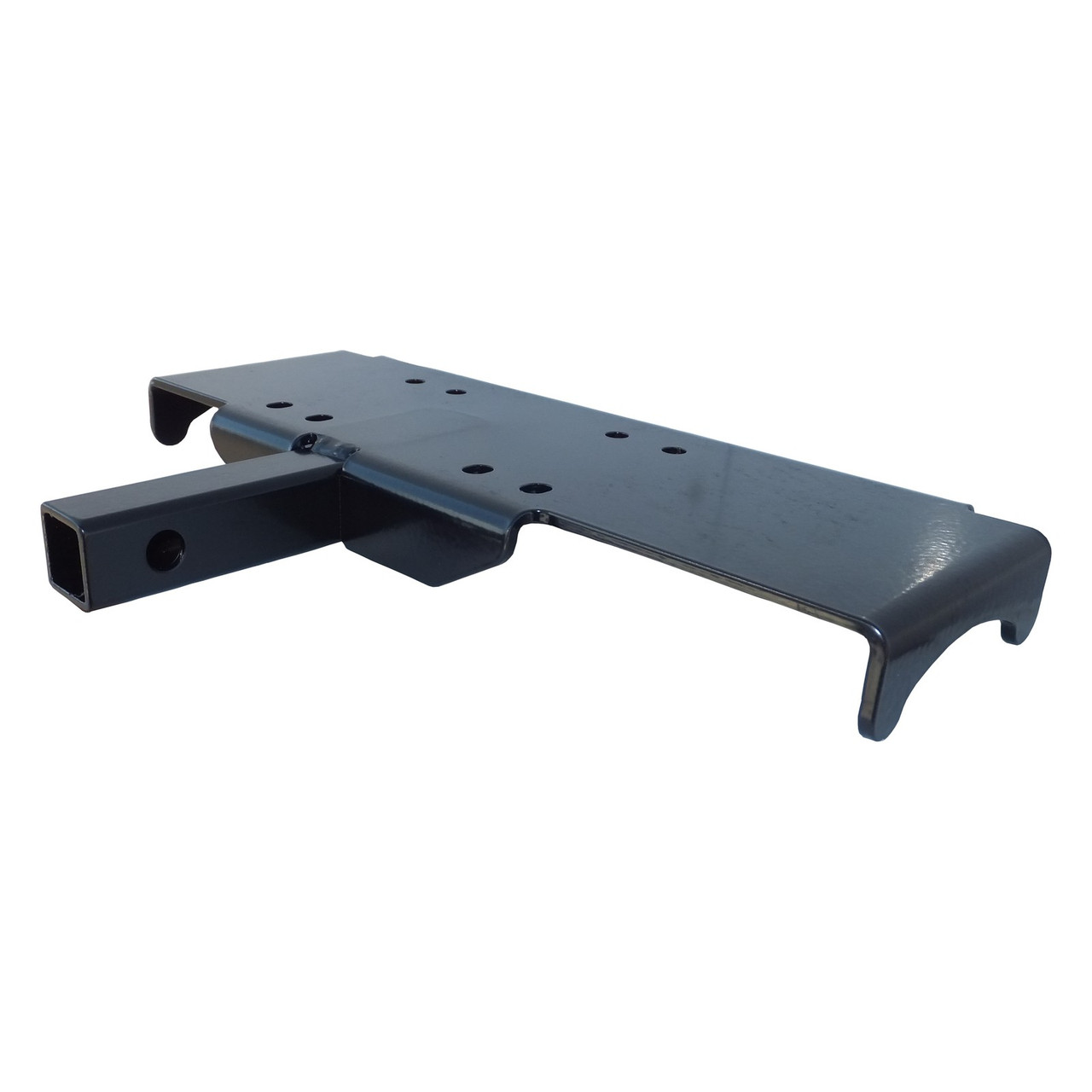

Winch carrier designed to fit 1-1/4" Class 1 receivers. Perfect for UTVs!
Use with winches with:
-
Roller Fairlead with a 4.875" bolt pattern
-
Standard ATV Winch 4-hole bolt pattern of 3.00" X 4.875"
-
Standard ATV Winch 2-hole bolt pattern of 3.100"
FITMENT:
(Note: With some winches the motor may be on the opposite side. This will require the rotation of the winch and the cable will need to be pulled all of the way out and then respooled in the opposite direction. Just make sure that your cable comes out between spool and the mounting plate when completed. This will also require you to reverse the wiring on the winch. With some winches you may need to remove or reverse the backing plate.)
- KFI: ST17 / S2000 / A2500 / A3000 / SE25 / SE35
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500lbs #2955AT
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF. - CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads. - BADLAND: 3000lb #68145 / 3500lb #61257 / 3500lb #61383
- CHAMPION: C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 31050 / 13502 / 13501 (requires rollers)
- CHAMPION: 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads. - SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads. - SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern - KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with 4.875" bolt pattern; available if needed #ATV-RF. - VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern. - Traveller: 1078088 Requires roller fairlead with 4.875" bolt pattern; #ATV-RF/1078302
- Possibly many others with the below standard mounting patterns:
- 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
