Product Description

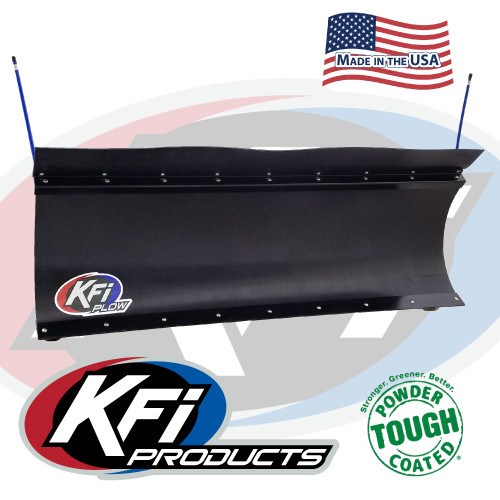

UTV Poly Blade Specifications:
- Includes a 7" high 2-ply top rubber flap
- 100% MADE IN USA
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Powder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with current KFI-106300 UTV Tube System 428
- Includes Plow Markers
- 2-Year KFI Warranty

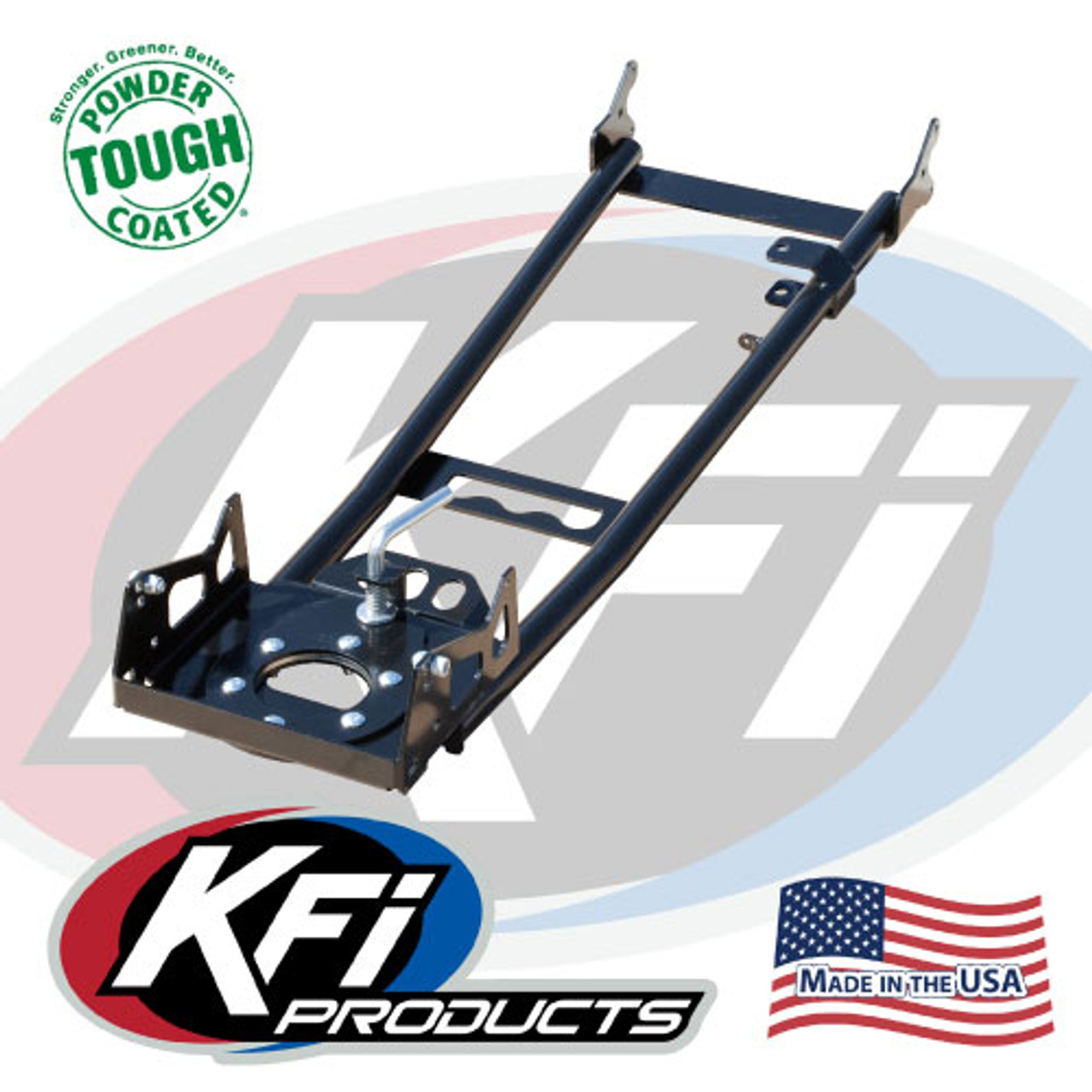

UTV Push Tube Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
UTV Model Specific Plow Mount Specifications:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guarantee
| Can-Am UTV's | Year | Model Specific Mount |
| 800 Commander | ‘10-18 | 105275 |
| 1000 Commander | ‘10-18 | 105275 |
| Defender H5 (500) | '17-18 | 105780 |
| Defender H8 (800) | ‘16-18 | 105780 |
| Defender H10 (1000) | ‘16-18 | 105780 |
| Maverick 1000 with stock Steel Tube bumper | ‘13-15 | 105690** |
| Maverick 1000 with stock Steel Tube bumper | ‘16-18 | 105880** |
| Maverick Trail 800/1000 | 2018 | A&M 105980 |
| Maverick Sport | 2018 | A&M 105980 |
| Maverick X3 | ‘16-18 | L 105985 |
** = (will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper)
A = Plow mount includes a lower 2” Receiver Hitch (built-in)
L = Requires KFI Winch Mount #101520
M = Requires KFI Winch Mount #101500 or Can-Am OEM Winch Mount
