Product Description
Complete 72" Snow Plow System — Minnesota-Made

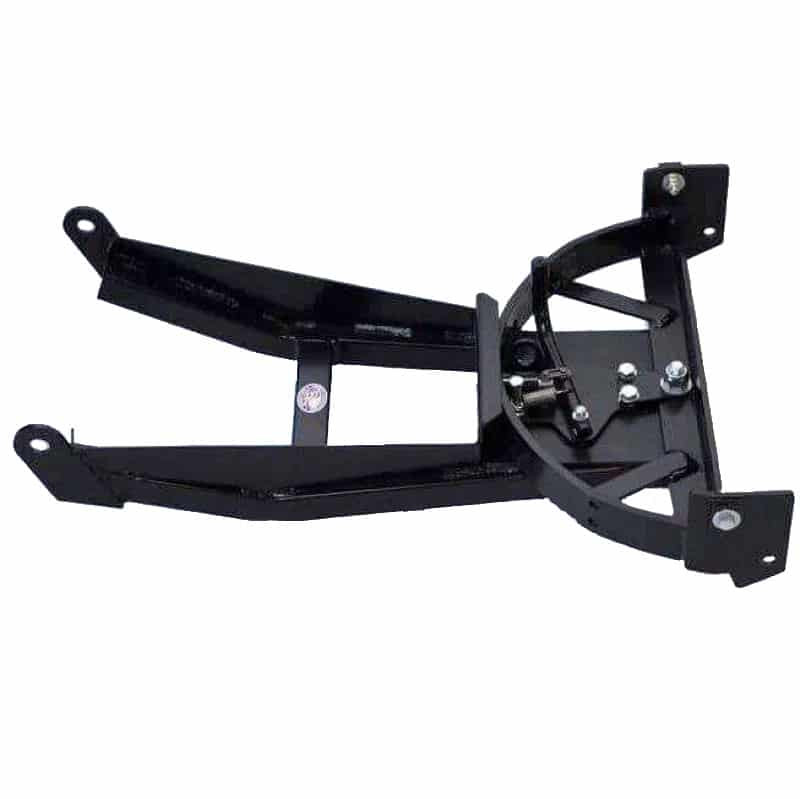

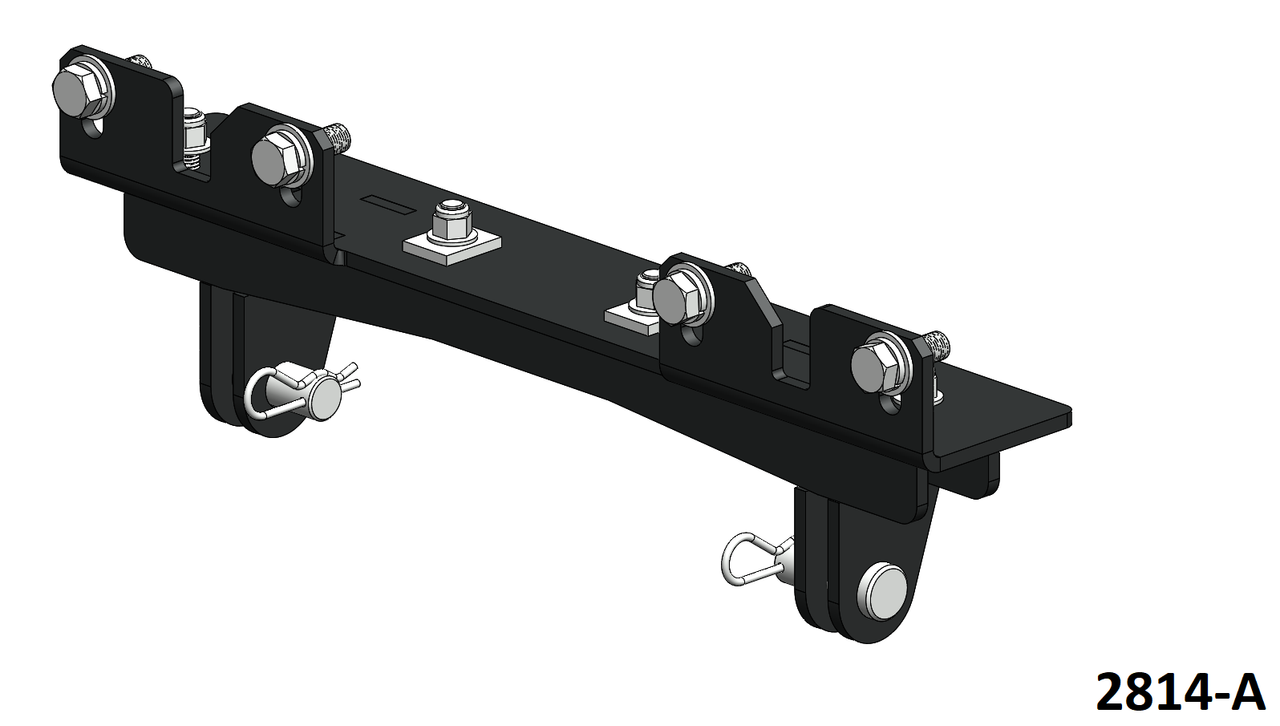

This is the whole setup in one box: 72" steel straight blade, V-shaped push tube, and the model-specific front-mount (part 2814) for the Kubota RTV/RTV-X 400-1140 (2004-2024). No piecing together blade, tube, and mount from different pages — one system, engineered together by Eagle / HitchDoc in Jackson, Minnesota from American steel.
Features

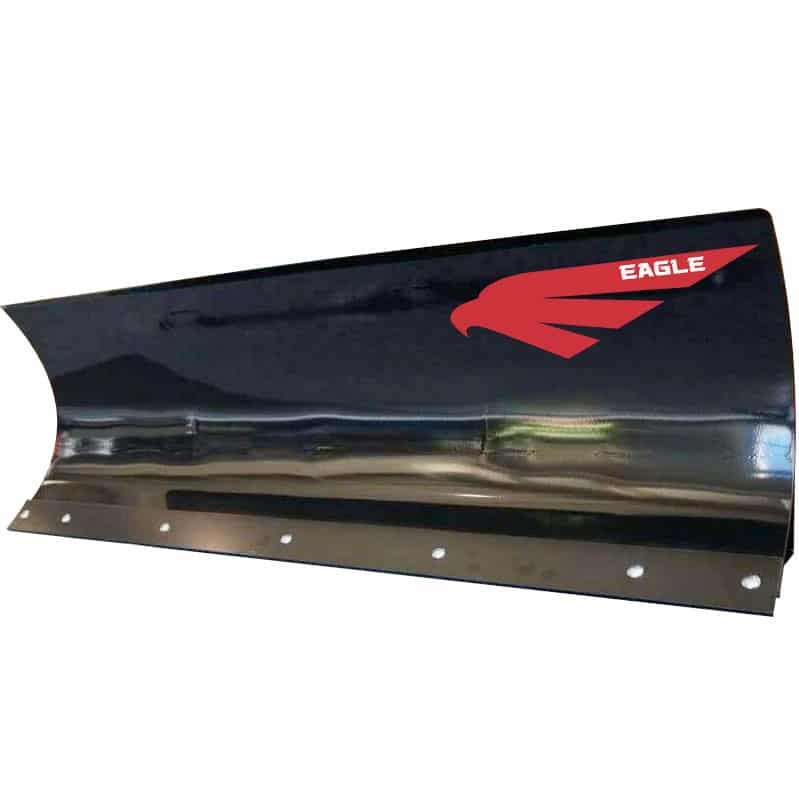

- 72″ wide, 15.75″ tall, with a 63″ angled cut width.
- Durable, reversible wear bar.
- Adjusts to 5 positions for side-to-side plowing.
- 4 adjustable blade pitches using bolt-on stops.
- Skid shoes protect surfaces and blade.
- Trip springs and rubber flap included for extra protection.
- Plow markers and easy mounting to push tube with 1/2″ bolts.
- Made of strong 1.5″ formed tubing.
- V-shaped design with cross members for extra durability.
- 5 manual angle positions, rotating 30° to each side.
- Swivel uses a heavy-duty 5/8″ bolt.
- Powder-coated in black for added protection.
- Front mount made from 1/4″ steel.
- Secured to frame with grade 5 hardware and clevis pins.
- Some mounts should be removed in off-season for ground clearance.
- Powder-coated in black.
Fitment
| Machine | Years |
|---|---|
| 400ci RTV 4X4 | 2008-2011 |
| 400ci RTV 4X4 | 2012-2016 |
| 400ci RTV 4X4 | 2017 |
| 400ci RTV 4X4 | 2018 |
| 400ci RTV 4X4 | 2019 |
| 400ci RTV 4X4 | 2020 |
| 500 RTV (1-1/4″ Receiver) | 2008 |
| 500 RTV (1-1/4″ Receiver) | 2009-2014 |
| 500 RTV 4X4 (2″ Receiver) | 2008 |
| 500 RTV 4X4 (2″ Receiver) | 2009-2016 |
| 500 RTV 4X4 (2″ Receiver) | 2017 |
| 500 RTV 4X4 (2″ Receiver) | 2018 |
| 500 RTV 4X4 (2″ Receiver) | 2019 |
| 500 RTV 4X4 (2″ Receiver) | 2020 |
| 500 RTV 4X4 (2″ Receiver) | 2021 |
| 520 RTV | 2022-2024 |
| 900 RTV 4X4 (1-1/4″ Receiver) | 2004-2009 |
| 1140 RTV (w/ front 1 1/4″ rcvr) | 2004-2008 |
| 1140 RTV (w/ front 1 1/4″ rcvr) | 2004-2008 |
| 1140 RTV (w/ front 1 1/4″ rcvr) | 2004-2008 |
| 1140 RTV (w/ front 1 1/4″ rcvr) | 2004-2008 |
| 900 RTV-X | 2013 |
| 900 RTV-X | 2014-2020 |
| 900 RTV-X | 2021 |
| 900 RTV-X | 2022 |
| 900 RTV-X | 2023 |
| 1100C RTV-X | 2014-2024 |
| 1120D RTV-X | 2013 |
| 1120D RTV-X | 2014-2018 |
| 1120 RTV-X | 2019-2024 |
| 1130 RTV-X | 2024 |
| 1140 RTV-X | 2015-2024 |
| RTV-X | 2024 |
Not sure about your trim? Call 800-596-0785 and we'll verify fitment before anything ships.
Make It Yours

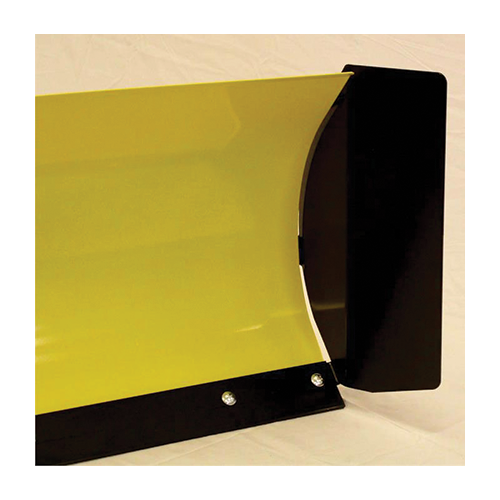

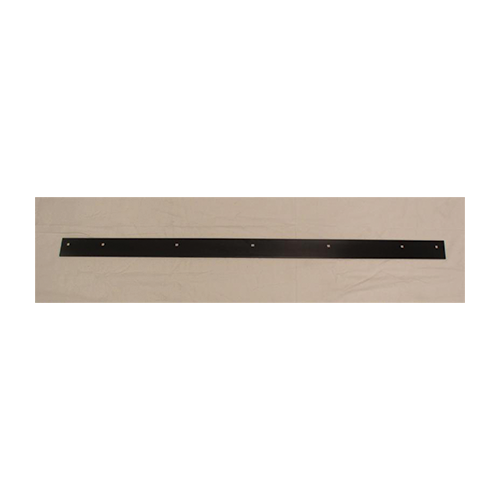

Add side shields or a spare wear bar from the options above. Want power angling from the seat? Pair this system with the Eagle Hydraulic Motion Pac kit. Prefer a V-plow? Eagle is one of the few manufacturers that makes one — call us about the V-blade setup.
FAQ
Is shipping free?
Yes — most of what we sell ships free to the lower 48 states. Orders under $150 have a flat $14.99 shipping fee. Alaska and Canada shipments incur additional freight charges, and international shipping is available — we quote it individually so you get the best rate. Questions? Email info@utvpartsandaccessories.com or call 800-596-0785.
Can I order by phone?
Always — the website works great, but sometimes it's nice to talk to a real person who lives in the USA. Call 800-596-0785 (M-F 11AM-4PM CST) and we'll answer questions, confirm fitment, and take your order directly.
Do you offer installation help?
Email info@utvpartsandaccessories.com or call 800-596-0785 — our team can walk you through the majority of product and installation questions, and if we can't answer something ourselves, we know how to get the answer and will make sure you're taken care of.
What comes in the box?
Everything you need to plow: the 72" steel blade with reversible wear bar, skid shoes, trip springs, rubber flap and plow markers, the V-shaped push tube, and the model-specific mount (part 2814) — with all mounting hardware.
Is this plow made in the USA?
Yes — Eagle plow systems are manufactured by HitchDoc in Jackson, Minnesota from American steel, and have been since 1990.
