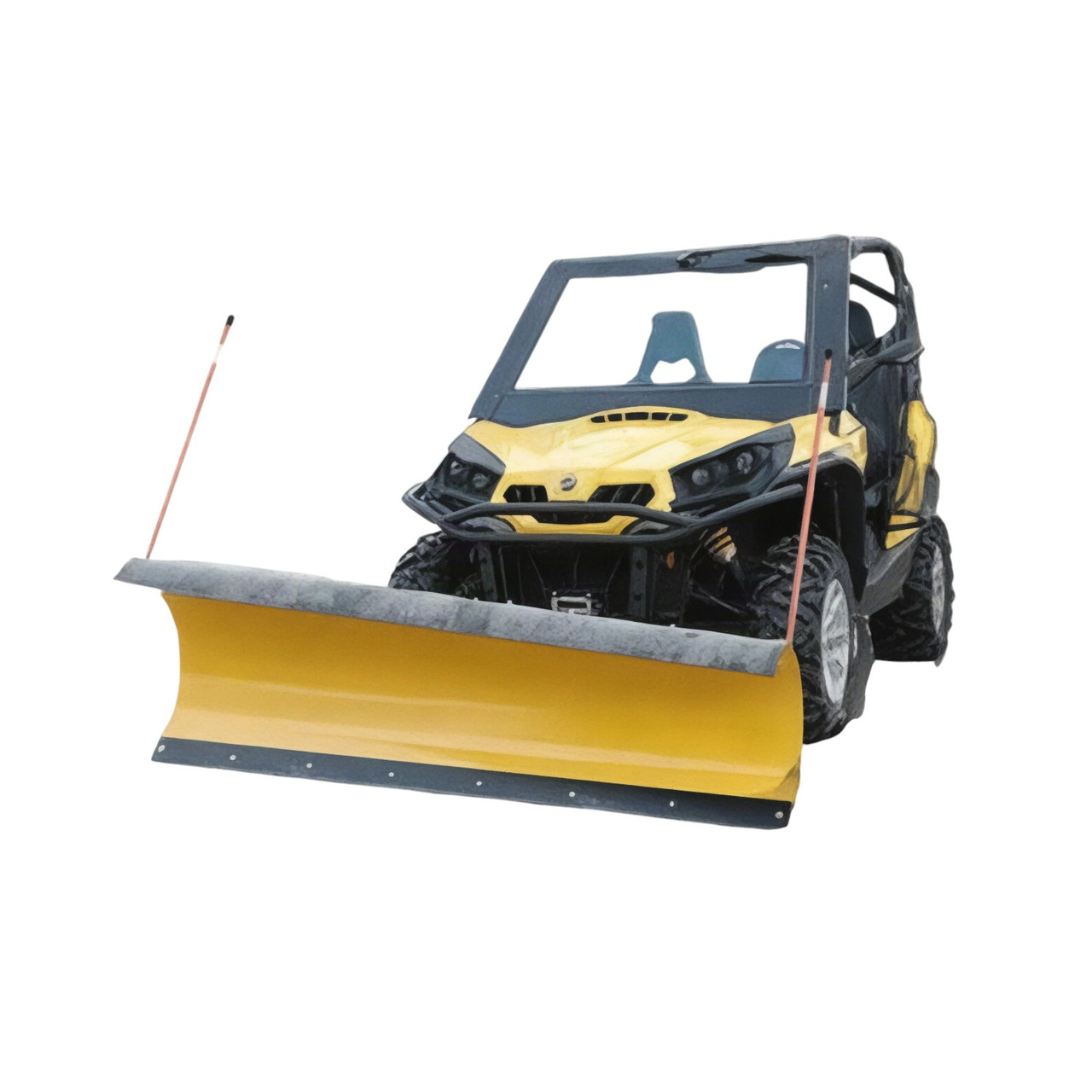

Denali Snow Plow Kit for Tracker 1000 SVX (2020)

DOT-style blade (18" to 22") with curved design cuts wet snow & throws powder out of your path
Made of 11 gauge steel
Impact Resistant Reinforcement System, includes edge stiffeners and stabilizer bar, to handle accidental impact
Sand-blasted powder coat with epoxy primer and TGIC Polyester top coat for ultimate corrosion protection, UV resistance and long lasting durability.
High strength, high yield 3/16" thick Grade 50 steel wear bar for maximum durability
Rubber flap stabilizer bar with upgraded (stiffer) rubber flap material which prevents snow from flying over the blade
Free Plow markers included
Height AND Angle Adjustable Premium steel skid feet
Includes 3 Year Warranty
Available colors: Black, Yellow or Red

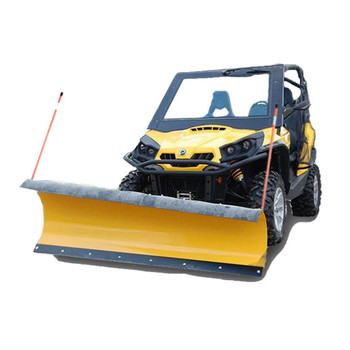

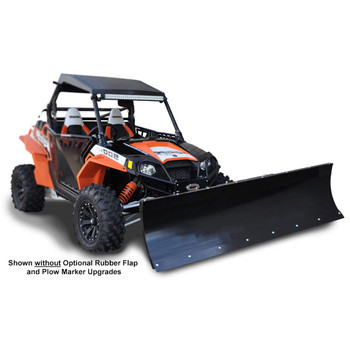

The Denali Standard Plow is made to handle the toughest conditions including sand, snow, and ice. The "Easy-Connect" design created by the Denali engineering team will make attaching and detaching your plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV, preventing damage to the front end or other vehicle parts from sudden impact.

The Denali Standard Plow System Includes:

• Plow Blade (19 inches high) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7 gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over center design ensures snow rolls up and is thrown forward

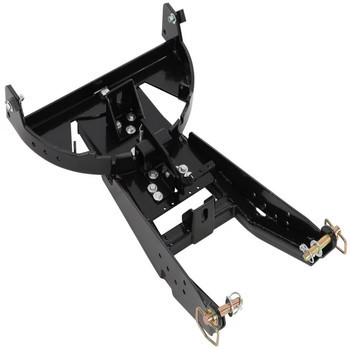

• Easy to install Push Tube and Mount system
• Paint Colors currently available: black
• Replaceable 7 gauge, Grade 50 steel wear bar for maximum durability
• Height and angle adjustable skid feet included

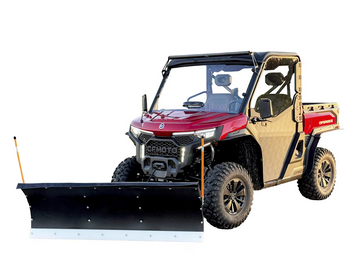

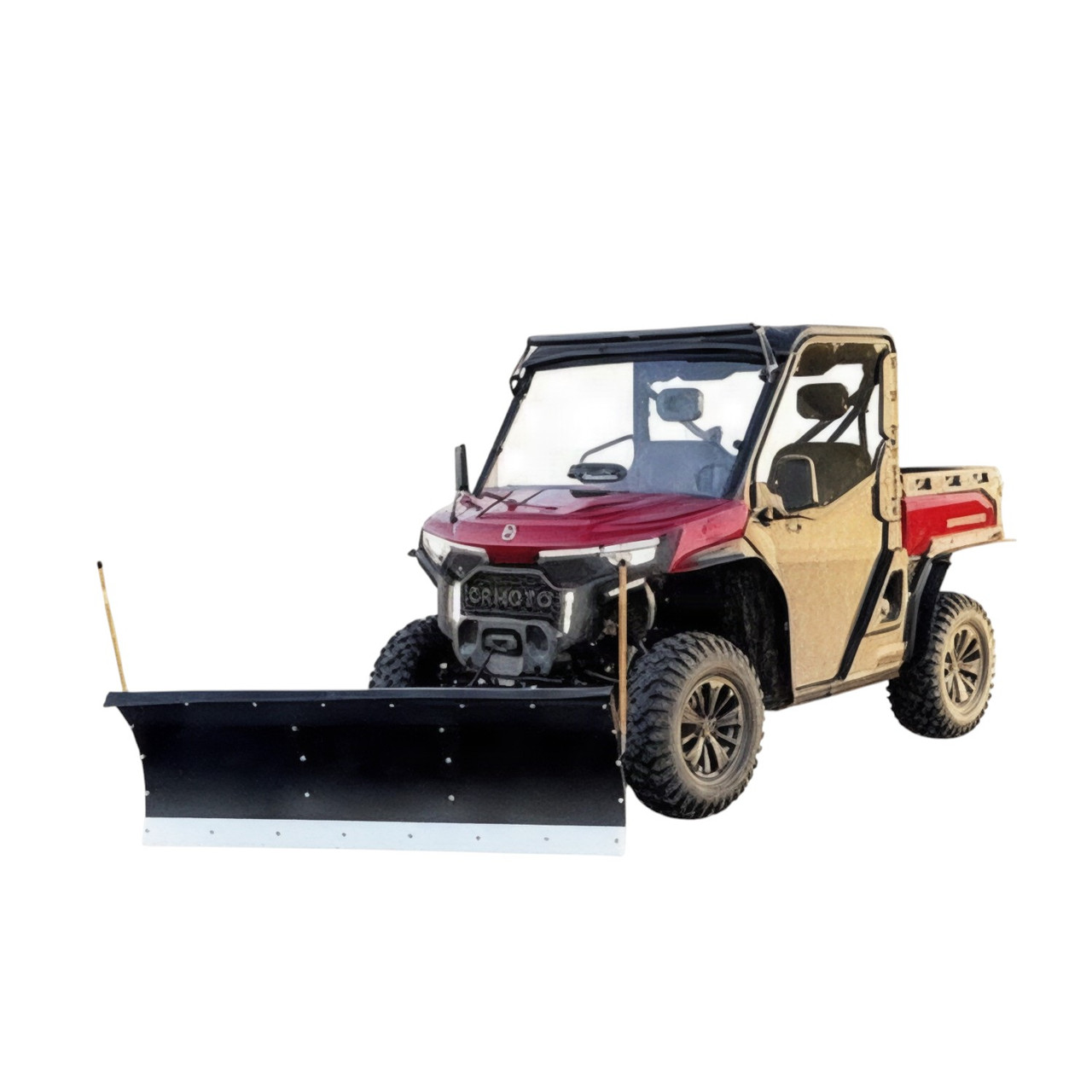

The Denali Poly blade delivers full-size plowing performance at a fraction of the weight of steel - the top pick if you want less wear and tear on your machine.

• Lightweight, rigid poly moldboard - far lighter than a comparable steel blade, easier on your front suspension, winch and frame, and easier to lift, install and remove
• Slick, non-stick poly surface - wet snow won't freeze or cake to the blade, so it sheds clean load after load
• 100% rust- and corrosion-proof - shrugs off snow, ice, sand and salt, and still looks new seasons later
• Forgiving on impact - the poly face absorbs hits from curbs and hidden obstacles and springs back to shape
• Steel-reinforced backing frame - poly face, steel muscle: full rigidity without the weight
• Premium polyurethane wear bar - safe for pavement, cobblestone and concrete, and with no steel edge it never leaves rust streaks on your driveway or garage floor
• 65° attack angle rolls snow forward and throws it farther
• Rubber flap and plow markers included · 3-year warranty

Optional Viper V3 4,500 lb Winch

Your Denali blade raises and lowers with your machine’s front winch, and the Viper V3 is the one we recommend. It has built-in mechanical braking to hold your plow up and is built in the same factory as Warn winches: Warn quality at an affordable price.

• Synthetic rope, 40′ × ¼″ — rated 5,400 lb, lighter than steel cable, and no steel burrs to cut your hands.
• Wireless remote for safer recovery — stand well clear of the line and run the winch from where you can see everything.
• Rocker switch included — raise and lower the blade from the seat.
• Automatic brake — 100% load holding on a 3-stage planetary gear train keeps the blade where you put it.
• IP67 sealed — slush, road salt and snowmelt stay out.

In the options above, pick your rope color (Black, Red or Blue). Adding the Plow Pulley Fairlead too? Choose Standard: the V3 uses the 3″ × 4 7/8″ bolt pattern.

Pushtube Length — standard, 2″ lift, 4″ lift or extended for tracks

The push tube has to sit level for the blade to scrape flat. Standard length is right for a stock machine on stock tires. If your machine is lifted or on oversize tires, the 2″ lift kit (front frame 13″–15″ off the ground) or 4″ lift kit (15″–17″) bolts to the standard push tube to bring it back to level and also clears most skid plates. Running tracks? Choose the Extended push tube: it is 15″ longer than standard so the blade sits ahead of the track fronts. Lift kits and the extended tube cannot be combined.

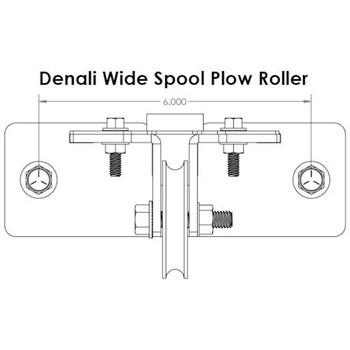

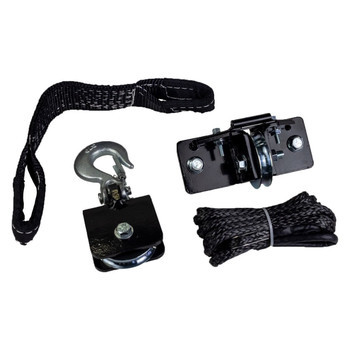

Optional Plow Pulley Fairlead

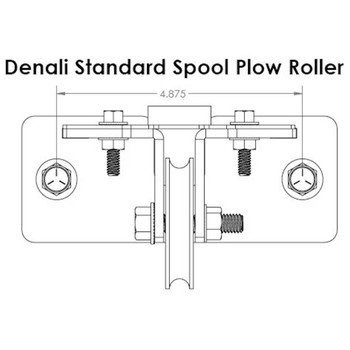

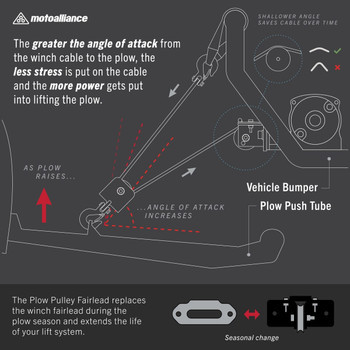

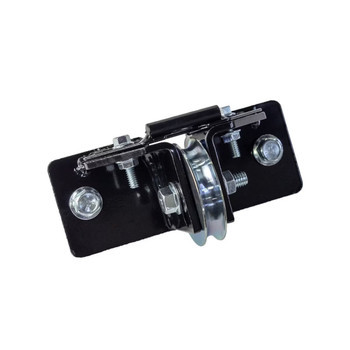

Plowing works your winch line at a steep downward angle over the fairlead, hundreds of short lifts a session. The Denali Plow Pulley Fairlead replaces your winch’s hawse or roller fairlead for the season with a large curved-groove roller that stops the line flattening and fraying, plus a pulley sheave, ¼″ clevis hook and a 12′ Dyneema synthetic lead that gives finer control raising and lowering the blade. Works with steel cable and synthetic rope. Pick Standard if your winch fairlead bolts are 3″ × 4 7/8″ apart (the common ATV/UTV winch pattern) or Wide for 3″ × 6″ wide-spool winches — measure centre-to-centre before you order.

Optional Plow Markers

A pair of tall blaze-orange flags on stainless-steel bases that bolt to the ends of the blade so you can see exactly where the corners are in deep snow, at dusk, and next to the garage door, mailbox and parked cars. Rated flexible to −50°F, hardware included. Only the Standard Series needs this add-on — Pro and Poly blades ship with markers already in the box, which is why the option disappears when you select those series.

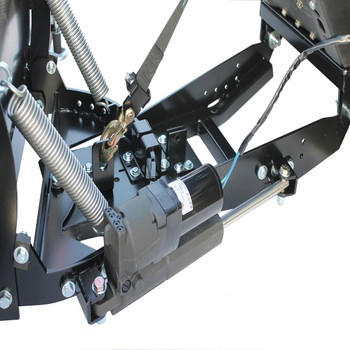

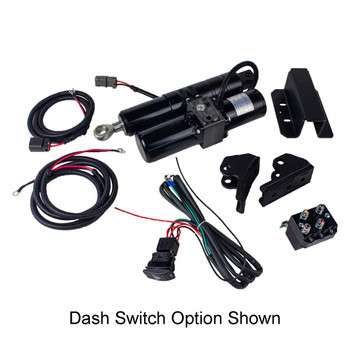

Optional Hydraulic/Electric Turn Kit

Angle the blade left or right from the seat instead of climbing out to pull the pin — a full side-to-side swing in about 10 seconds, and it holds fast when you hit a hard bank. The sealed-for-life Parker hydraulics (no fluid to buy, bleed or top up) use heavy-duty ¾″ chrome-plated cylinder shafts with 4,000 lb overload protection, bolt straight to the Denali push tube with two bolts and a weatherproof harness, and stay backwards-compatible with the manual turn. Two control choices: Dash Switch gives you a clean flush-mount OEM look for turning the plow, while the Joystick is a single controller that runs both your winch (raise/lower) and the plow angle from one lever — the pick if you want everything on one hand. Worth it if you plow a long driveway, a lot, or in the dark.

Plowing with a cab or an enclosure? An Ice Crusher cab heater runs off your engine’s coolant, with a high-CFM blower and 360° adjustable vents — enough heat to defrost the windshield and keep your hands and feet warm through a long storm.

Every kit comes with the hardware, fittings and hoses plus picture-rich instructions, Minnesota-based tech support is a phone call away, and it ships free to the lower 48.
