Product Description

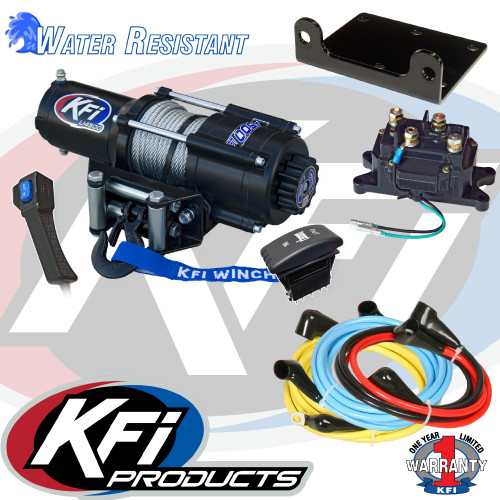

Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI winch and feel confident you can pull yourself out of any situation. The compact 4500 lb ATV/UTV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty, all-metal turn clutch. All of the KFI winches are backed by a one year limited warranty and come with everything you need other than an ATV/UTV model-specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model-specific ATV/UTV winch mount.
New UTV Dash Rocker Now Included with the U45-R2

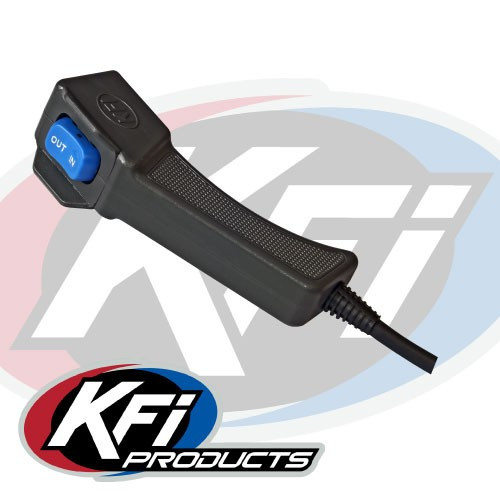

Also included is a handheld 14' corded remote for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.

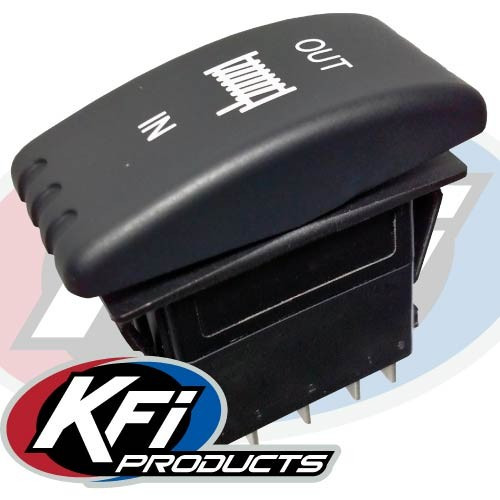

Take control of your winch with the included UTV Dash Rocker Switch. It comes with the switch and the wiring harness with plug for easy install. The dash rocker also comes with a blue led light inside to light up your dash at night. This rocker switch allows you to control your winch with just the touch of your finger, never having to let go of your steering wheel.

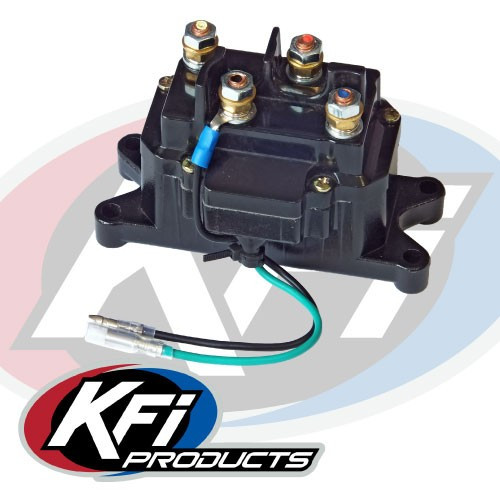

The included Heavy Duty Electric Contactor protects your UTV's electrical system and switches the power distribution of your winch that is controlled from your switches.
Specifications:
Model: U4500 UTV Series
Rated Line Pull: 4500 lbs.
Motor: 12V DC, 1.7 hp Permanent Magnet
Gear Ratio: 166:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 2" (D) x 3.19" (L)

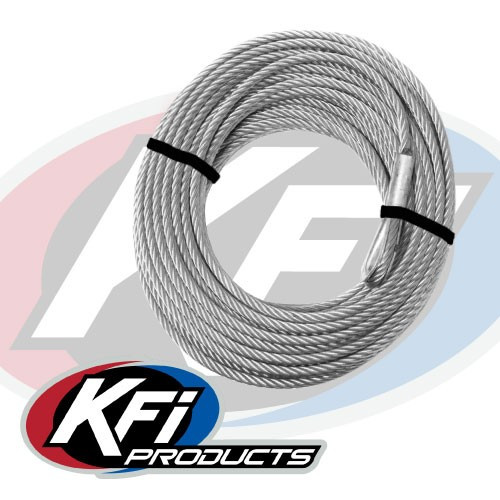

Cable: 15/64" (D) x 38' (L)
Fairlead: Multi-directional Roller
Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
Winch Dimensions: 14.6" L x 4.55" D x 5" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 36.6 lbs. (complete kit)
| Line Speed and Motor Current (First layer) | ||||||
| Line Pull Max | lbs | 0 | 1000 | 2000 | 3000 | 4500 |
| kgs | 0 | 454 | 907 | 1361 | 2041 | |
| Line Speed | FPM | 12.8 | 9.8 | 8.5 | 6.9 | 4.6 |
| MPM | 3.9 | 3.0 | 2.6 | 2.1 | 1.4 | |
| Max Current | amps | 28 | 80 | 130 | 180 | 280 |
| Cooling Time | minutes | 5 | 5 | 5 | 5 | 5 |
| Line Pull and Cable Capacity | |||||
| Layer of Cable on Drum | 1 | 2 | 3 | 4 | |
| Max Pulling Capacity Per Layer | lbs | 4500 | 3841 | 3310 | 2907 |
| kgs | 2041 | 1742 | 1501 | 1319 | |
| Cable Capacity Per Layer | ft | 8.5 | 19.0 | 31.2 | 38 |
| m | 2.6 | 5.8 | 9.5 | 11.6 | |
