Product Description

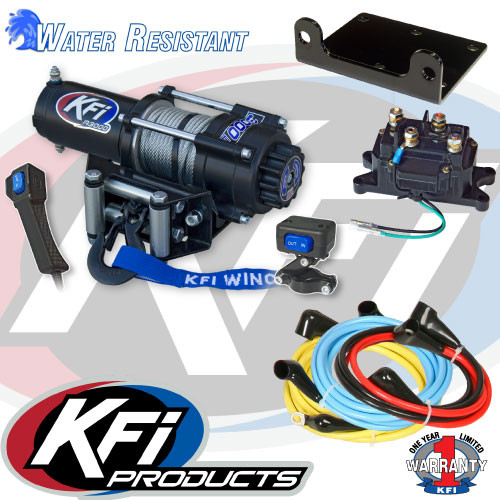

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI winch and feel confident you can pull yourself out of any situation. This 3000 lb ATV Series winch features quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI one year limited warranty. The KFI A3000 winch comes with everything you need other than an ATV model specific-winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model-specific ATV winch mount.

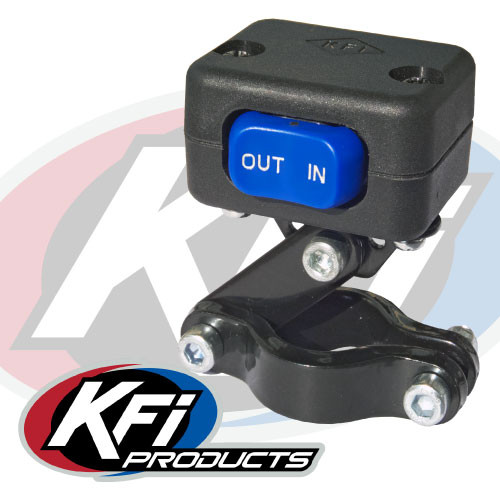

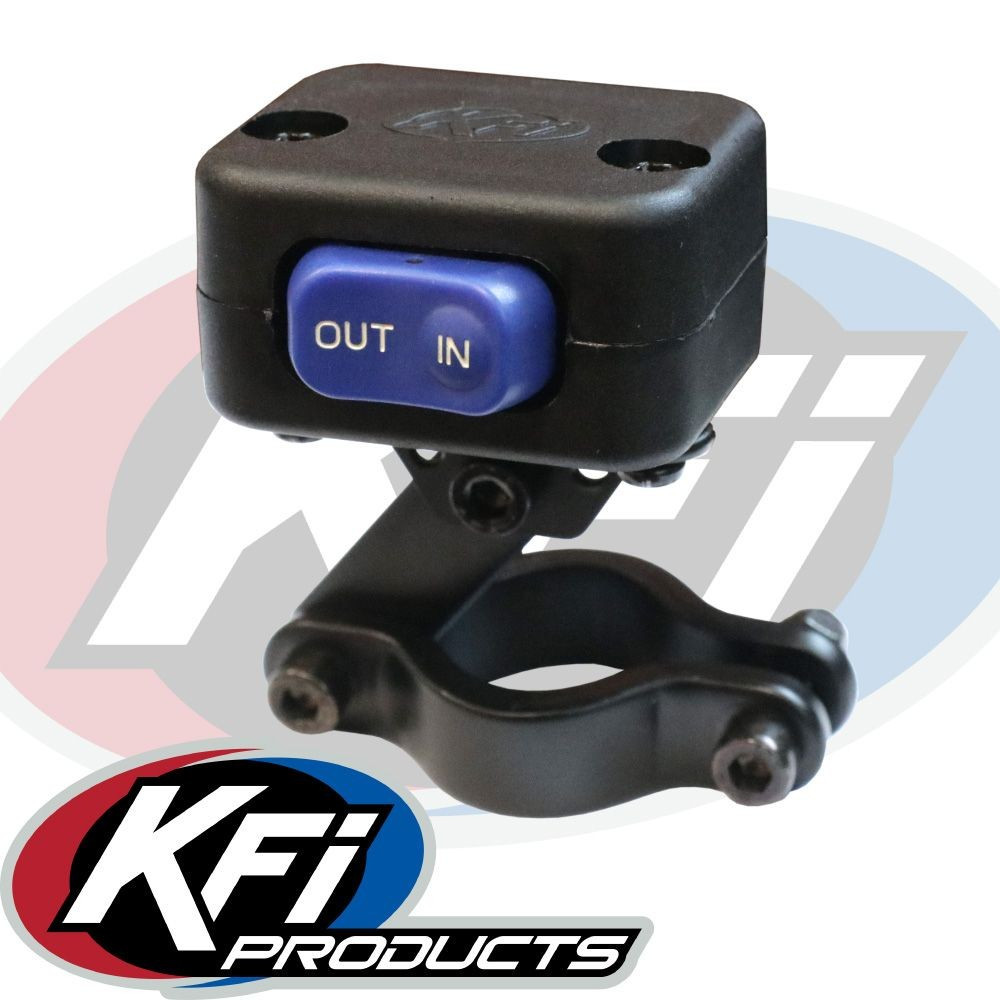

Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.

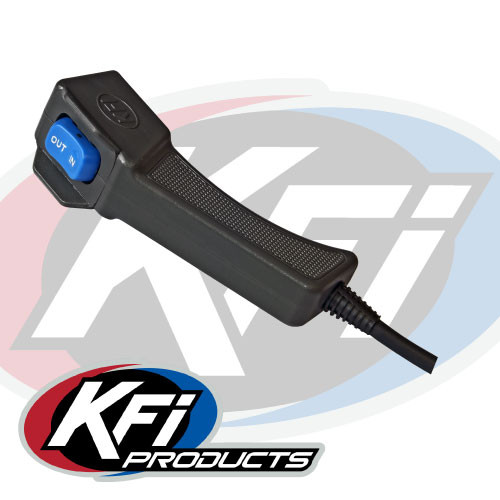

Also included is a handheld 14' corded remote for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring system so that you can store your remote when not in use.

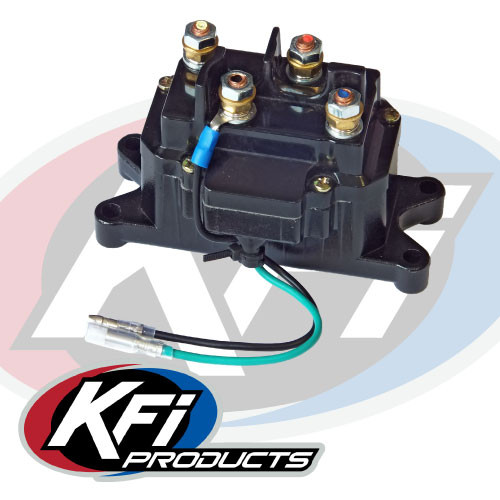

The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
Specifications:
Model: A3000 ATV Series
Rated Line Pull: 3000 lbs.
Motor: 12V DC, 1.3 hp Permanent Magnet
Gear Ratio: 171:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 1.5" (D) x 3.32" (L)
Cable: 3/16" (D) x 45.9' (L)
Fairlead: Multi-directional Roller
Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch
and a Heavy Duty Corded Remote Switch
Winch Dimensions: 13.39" L x 4.06" D x 4.29" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 24.8 lbs. (complete kit)
| Line Speed and Motor Current (First layer) | ||||||
| Line Pull Max | lbs | 0 | 1500 | 2000 | 2500 | 3000 |
| kgs | 0 | 680 | 907 | 1134 | 1361 | |
| Line Speed | FPM | 12.8 | 7.22 | 6.23 | 5.25 | 4.27 |
| MPM | 2.7 | 2.2 | 1.9 | 1.6 | 1.3 | |
| Max Current | amps | 15 | 70 | 95 | 120 | 150 |
| Cooling Time | minutes | 5 | 5 | 5 | 5 | 5 |
| Line Pull and Cable Capacity | ||||||
| Layer of Cable on Drum | 1 | 2 | 3 | 4 | 5 | |
| Max Pulling Capacity Per Layer | lbs | 3000 | 2370 | 1960 | 1670 | 1460 |
| kgs | 1361 | 1075 | 889 | 759 | 662 | |
| Cable Capacity Per Layer | ft | 7.15 | 15.4 | 24.7 | 34.5 | 45.9 |
| m | 2.18 | 4.71 | 7.52 | 10.52 | 14 | |
* Use double line and snatch block for pulling loads over 2,300 lbs/1043.26 kgs.
