Product Description

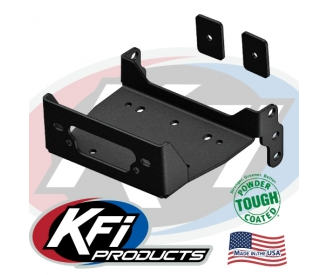

KFI Winch Mount for the following Yamaha UTV's:
| Yamaha UTV | Year |
| Viking 4x4 | '14-22 |
| Viking VI 4x4 | '15-22 |
| Wolverine / R-Spec / SE | '16-18 |
| Wolverine X2 / R-Spec / SE | 2019 |
| Wolverine X4 / SE | '18-19 |
100% MADE IN USA.Specifications:
- Constructed of 3/16" steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
Designed to work with the following winches:
- KFI on VIKING / Viking VI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50 / AS-50w (Will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
- KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AS-50 / AS-50w (Will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
- KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AS-50 / AS-50w
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40 (Requires the drilling of two holes)
- WARN: Vantage 2000-3000lb
- WARN: Vantage 4000lb (Requires the drilling of two holes)
- WARN: ProVantage 2500-3500lbs
- WARN: ProVantage 4500lbs (Requires the drilling of two holes)
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- SUPERWINCH: Terra 45 (Requires drilling of two holes)
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: 2-Hole Winches
BADLAND: Standard Winches
- (Requires drilling of hole(s))
- BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
- (Requires drilling of two holes)
- CHAMPION: WIDE Winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER: KT4000 / KT4000C (Requires the drilling of two holes)
- (Requires drilling of two holes)
- KEEPER CORP. TRAKKER: KT2000 (Requires the drilling of one holes)
- SMITTYBILT: XRC 2.0 (Requires drilling of one holes)
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- SMITTYBILT: XRC 3.0 / XRC 4.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up.
- All with 3.00" x 6.600" bolt pattern mount-up will require the drilling of two holes.
- Traveller: 1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns:
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE that will require the drilling of two holes (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole that will require the drilling of one hole (3.10" with rollers that are 4.875" bolt pattern)
