Product Description
Seizmik Universal LED Light Bar
Specifications:
- Total Lumens: 3240
- Total Operating Voltage: 40-120V DC
- Color Temperature: 6000k (cool blue white)
- Waterproof Rate: 1 meter (IP 67 standard)
- Housing Material: Diecast Aluminum
- Mounting Bracket: Stainless Steel
- Total Current Draw: 4.5A @ 12v / 2.3A @24v
- Total Wattage: 54w total (2 x 9w & 2 x 18w)
Spotlight-
- 1080 Lumens
- (6) 3 watt LEDs (18 watts total)
- 1.4 A @12V, 0.75A @ 24V current draw
- (2) LED Spot Fixtures included
Floodlight-
- 540 Lumens (each)
- (3) 3 watt LEDs (9 watts total)
- 0.85A @ 12V, 0.42A @ 24V current draw
- (2) LED Flood Fixtures included
Universal Mounting System
The innovative and highly adaptable system allows the light bar to be mounted in a wide variety of configurations. Comes complete with bar, mounting hardware, lights, harness and switch- everything required to setup and go. Installation is quick and easy with no drilling required.

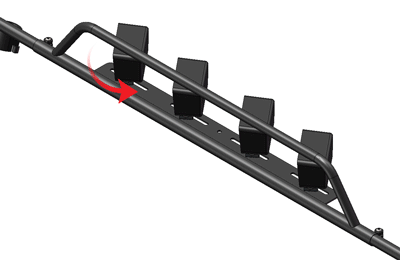

Variable Angle Knuckles

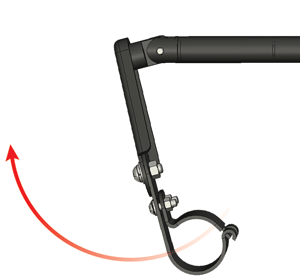

Adjustment Linkage
Dual pivot linkage allows bar to be adjusted up, down, forwards, or backwards in an arc motion while keeping the lights aimed where desired.
Allows the light bar position to be adjusted to work with flip windshields, different roof overhangs, running the light bar high or low

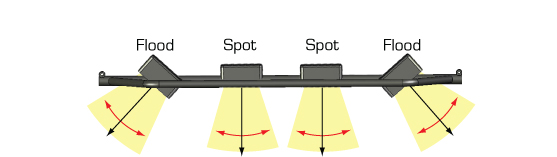

Multi-directional Light Aiming
Each fixture can be individually aimed up, down, left or right.
Point the 2 center spots straight and angle the 2 outside floods to point out slightly for optimum illumination

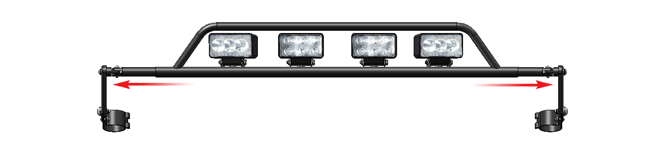

Telescoping Arm
Light bar can expand and contract to conform to different mounting point widths
Additional Features
Bar Clamp- Bar clamp fits tight to roll cage
Installs fast, no drilling required
Steel Construction- Sturdy, heavy duty steel construction
Light Guard- Steel bar protects the lights from damage

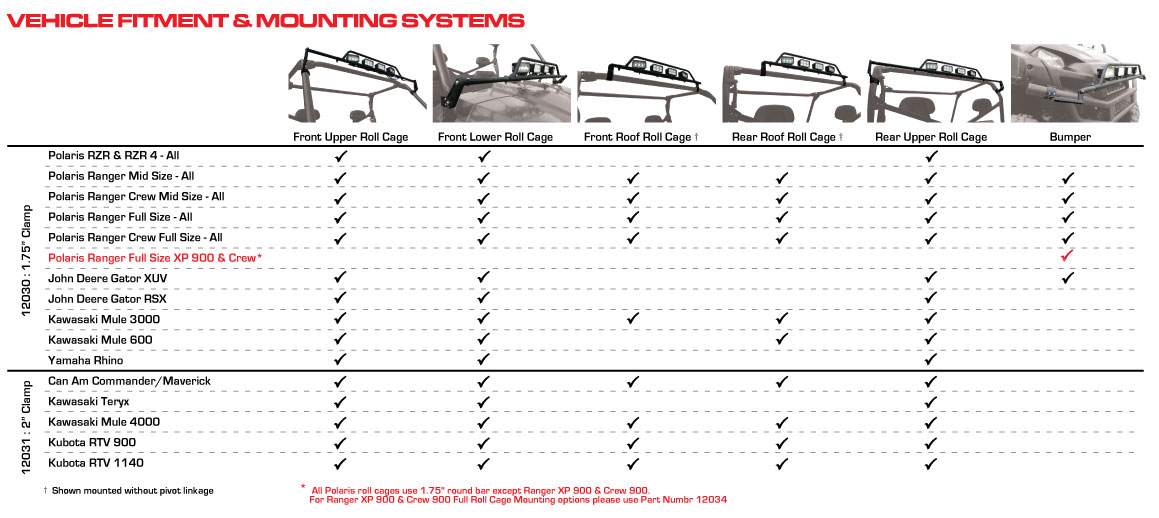

Available for 1.75", 2", and Polaris Pro-Fit Cages
Select Part # 12034 for Polaris Pro Fit Cage Clamp
