Product Description

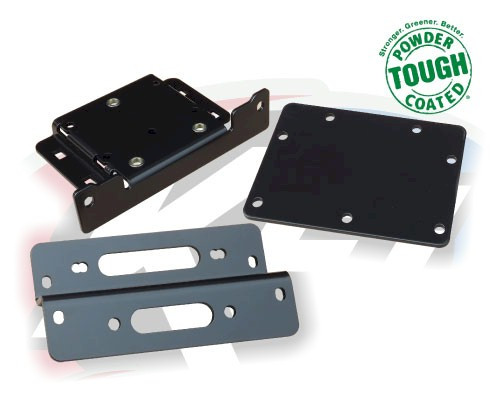

KFI Winch Mount for the following Kawasaki UTV's:
- All 2008-2013 Kawasaki TERYX 750
- Will NOT work on the Teryx 4 See #KFI-100935
Specifications:
- 100% MADE IN USA
- Plate Constructed of 3/16" steel
- Fairlead bracket Constructed of 1/4" steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- Roller fairlead and winch not included
PLEASE NOTE: Check the listings below to see if this winch mount is compatible with your winch. You may need to add a roller fairlead in the options above.
Designed to work with the following Winches:
- KFI: ST17 / S2000 / A2500 / A3000 / U4500 / U4500w / SE25 / SE35 / SE45 / SE45W
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN: Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK : 1500lbs #2955AT
- Requires a Fairlead with a 4.875" Bolt Pattern (add above if needed) - CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND : 2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - BADLAND : 3000lb #68145 / 3500lb #61257 / 3500lb #61383 / 5000lb #68144 / 5000lb #61384
- CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 13501(requires rollers) / 14061
- CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - CHAMPION: 14001 and 14061 / 14051 / 14560
- KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER : KT2000
- Requires purchase of a roller Fairlead (add above) - SMITTYBILT : XRC 2.0
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - SMITTYBILT : XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern) - VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" Bolt Pattern mount-up
- All with 3.00" x 6.600" Bolt Pattern mount-up - Traveller: 1078302 / 1078088 / 1078311
- Possibly Many others with the below standard Mounting patterns
- 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with Rollers that are 4.875" bolt pattern) - QUADBOSS: RP25 / RP35
