Product Description

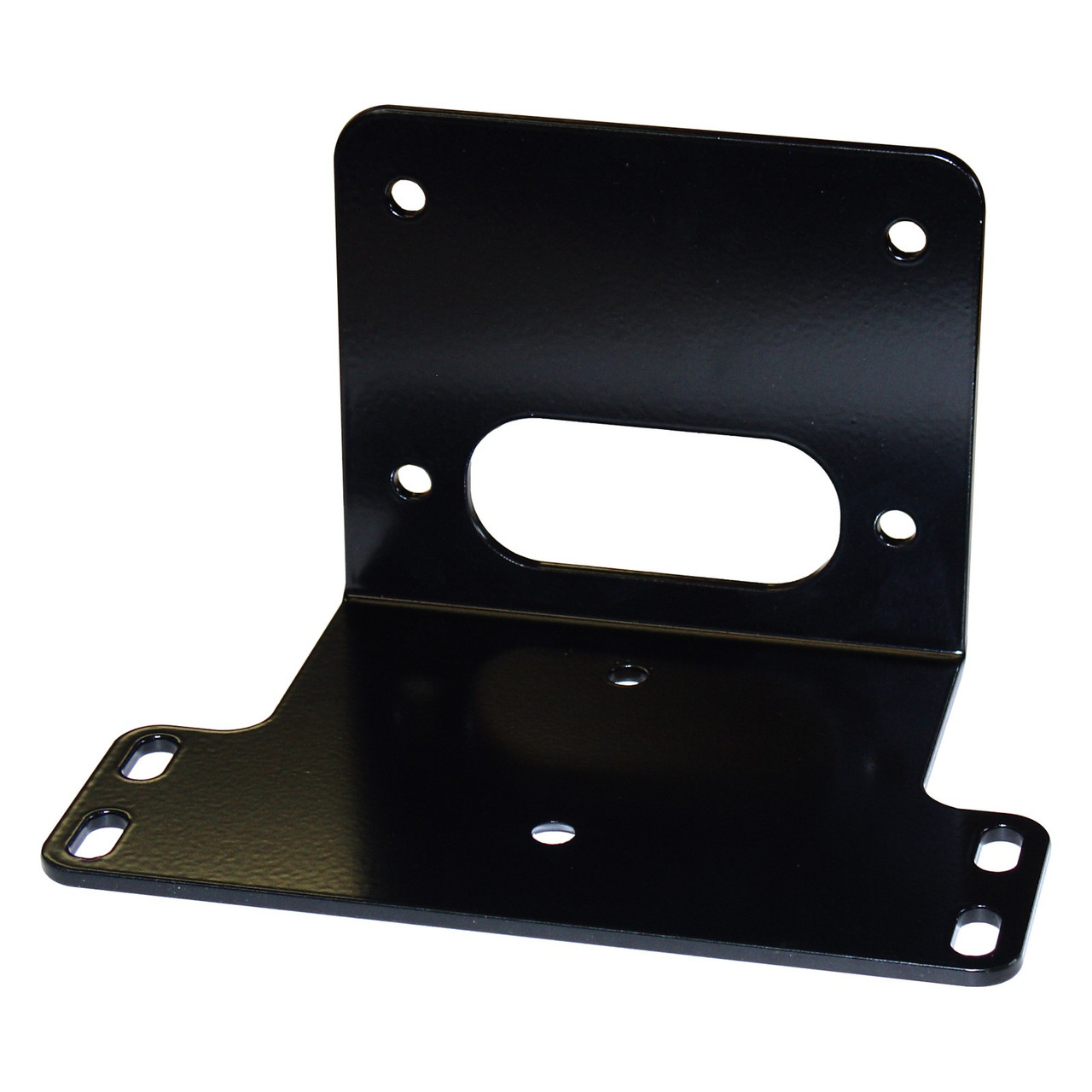

KFI Winch Mount
FITMENT: 2005-2016 Mule 600/610 (If you have a four or more seater model you will need the wire extension kit due to the winch being farther from the battery. Select the option to add the wiring kit above.)
Specifications:
- 100% MADE IN USA
- Constructed of 3/16" steel
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- Roller fairlead and winch not included
PLEASE NOTE: Check the listings below to see if this winch mount is compatible with your winch. You may need to add a roller fairlead in the options above.
Designed to work with the following Winches:
- KFI: ST17 / S2000 / A2500 / A3000 / SE25 / SE35
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK : 1500lbs #2955AT
- Requires a Fairlead with a 4.875" Bolt Pattern (add above if needed) - CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND : 2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - BADLAND : 3000lb #68145 / 3500lb #61257 / 3500lb #61383
- CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 12551 / 13004 / 13050 / 13502 / 13501(requires rollers)
- CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER : KT2000
- Requires purchase of a roller Fairlead (add above) - SMITTYBILT : XRC 2.0
- Requires the correct Fairlead with a 4.875" Bolt Pattern (add above if needed)
- Listed Models come with incorrect ATV Roller Fairleads - SMITTYBILT : XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern) - VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern) - Traveller: 1078302 / 10780
- Possibly Many others with the below standard Mounting patterns
- 4-Hole Standard (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
- 2-Hole (3.10" with Rollers that are 4.875" bolt pattern) - QUADBOSS: RP25 / RP35
