Product Description
For a UTV owner, there is nothing handier, more convenient or appreciated, than a place to quickly store and transport gear and tools.
Truth is, though, Great Day's Front Rack is more than a hauling device.
With its handsome but rugged design, the Front Rack actually transforms a wimpy-looking UTV into a machine with an attitude and ability.

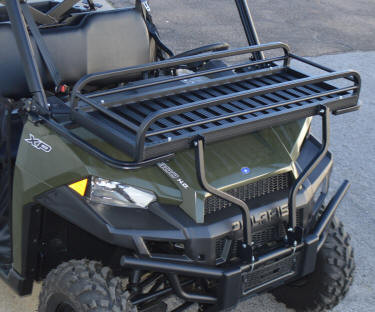

The Front Rack mounts quickly and easily onto most full-sized UTV's and features a unique pivoting mechanism for gaining access to the front storage compartment.
By removing two quick-clip pins, in just seconds the Front Rack can be rotated forward -- allowing the storage compartment door to be opened and closed.
The Front Rack is constructed of aircraft aluminum and provides an 18" x 50" x 7" carrying cradle with multiple tie-down points.
A super-tough, sleek, powder-coat finish on the Front Rack gives it good looks and insures lasting quality.
The Front Rack weighs only 14 lbs, has a load limit of 250 lbs and ships by UPS.
MADE WITH PRIDE IN THE USA!
PLEASE NOTE:
- Modification and/or drilling to the vehicle may be necessary for installation.
- This CANNOT be mounted onto a Polaris Ranger 570 Midsized UTV with a Pro-Fit Style Roll Cage nor onto a Honda Pioneer 500!
- UTV must have a tubular bumper/brush guard onto which to mount the Front Rack.
FOR INSTALLATION OF THE UTV FRONT RACK ON FULL SIZED UTV’S WITH A PRO-FIT ROLL CAGE:
RANGER 900 WITH PRO-FIT ROLL CAGE/RANGER 1000 WITH PRO-FIT ROLL CAGE:
- INSTALL 1- 5/16” X 1 ¼” BOLT, 2 FLAT WASHERS AND LOCKNUT INTO MIDDLE HOLE OF THE LEFT AND RIGHT ANGLE BRACKETS (BRACKETS WITH THREE HOLES ON ONE SIDE). TIGHTEN COMPLETELY. NOTE: THIS BOLT WILL ACT AS A HORIZONTAL REST WHEN INSTALLED.
- REMOVE THE BOTTOM ALLEN BOLT SECURING ROLL BAR SECTIONS ON EACH SIDE OF POLARIS
- INSTALL THE BRACKET TO EACH SIDE OF RANGER USING 1- 5/16” X 3 ½” BOLT AND 12 FLAT WASHERS AND LOCKNUT.
- 10 OF THE FLAT WASHERS ARE TO BE USED BETWEEN ANGLE BRACKET AND ROLL BAR. THESE WILL FILL THE VOID LEFT BY THE HEAD OF THE REMOVED ALLEN BOLT.
- BOLT WILL PROTRUDE THROUGH INSIDE OF ROLL BAR. TIGHTEN ALL ASSEMBLIES. BRACKETS SHOULD SIT HORIZONTAL TO THE GROUND.
