Product Description

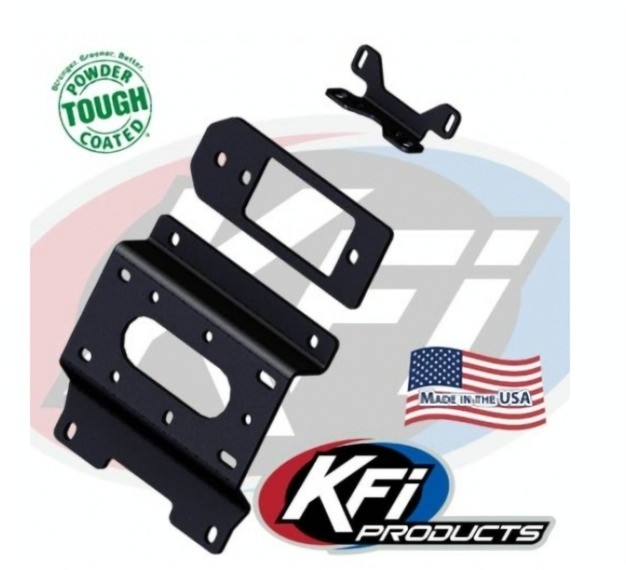

KFI Winch Mount for Textron UTV's:
| Prowler Model | Year |
| Prowler Pro | 2019 |
| Prowler Pro Crew | 2019 |
| Cushman Model | Year |
| Hauler 4x4 | 2019 |
| Hauler 4x4 Crew | 2019 |
Specifications:
- 100% MADE IN USA
- Constructed of 3/16" steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Satisfaction guaranteed
- Roller fairlead and winch not included.
Designed to work with both standard 4.875" and WIDE 6.000" or 6.600" bolt pattern fairleads
Mount Designed to work with the following Winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AS-50 / AS-50w
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN: VRX 45 / VRX 45-S
- WARN: AXON 35 / 35-S / 45RC
- WARN: AXON 45 / 45-S / 55 / 55-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: RT40 / XT40
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN: Vantage 4000lbs / Provantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- CHAMPION : WIDE Winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- Traveller: 1078311
- All with 3.00" x 4.875" Bolt Pattern mount-up
- All with 3.00" x 6.600" Bolt Pattern mount-up
- Traveller: 1078088/1078302
- Possibly many others with the below standard mounting patterns.
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
- - 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern) - QUADBOSS: RP25/RP35
